Elliptical Arch Popsicle Bridge

A first-year constrained structural design project: build a high-performing bridge with a strict 100-stick, no-modification rule.

Elliptical Arch + Howe Truss Concept

Detailed project page

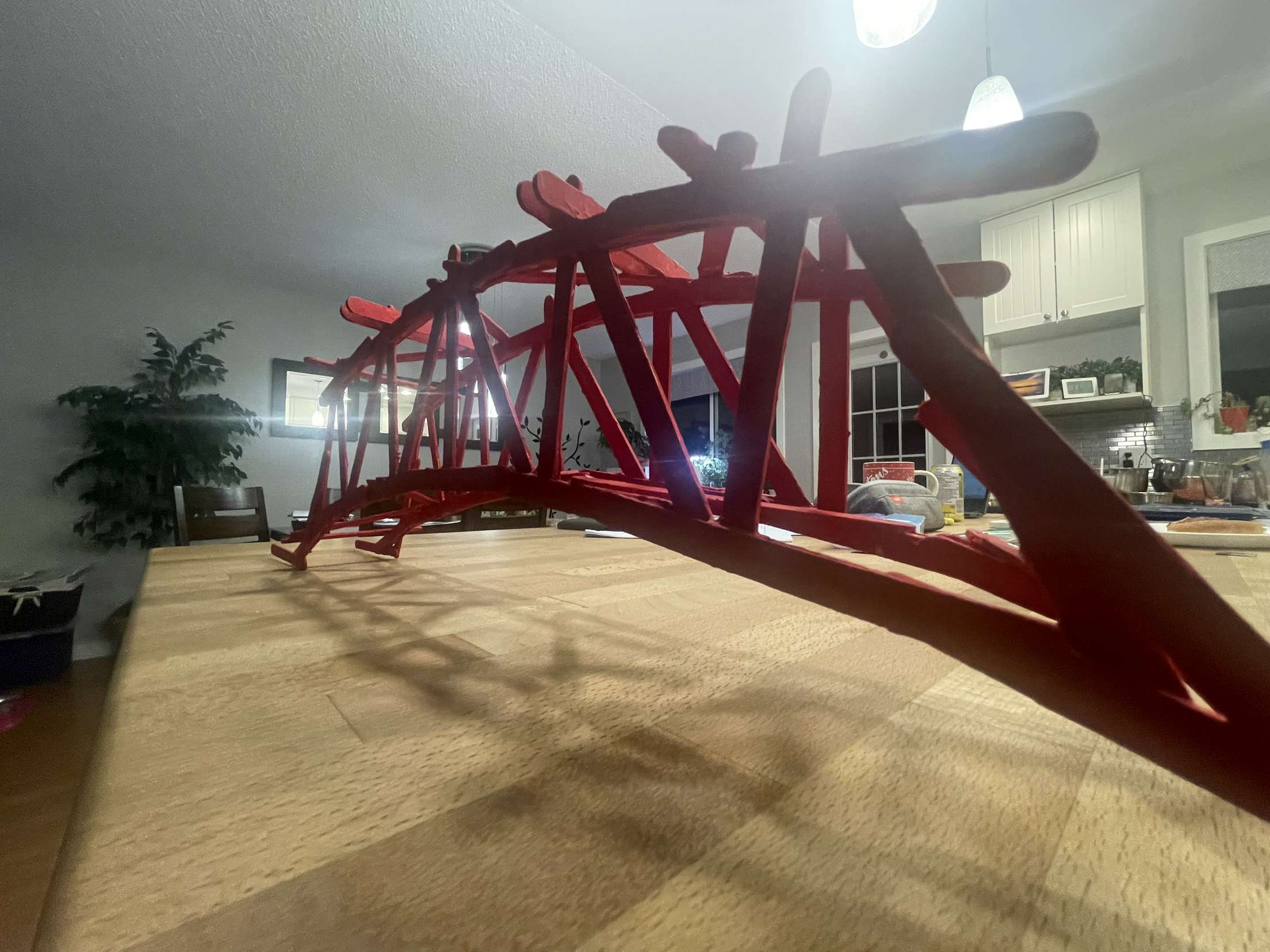

Finished elliptical arch popsicle-stick bridge.

Problem Definition

The design had to maximize stiffness and load capacity under a hard material constraint: exactly 100 popsicle sticks with no cutting or shaping.

Problem Solution

An elliptical arch with Howe-style triangulation was iterated through trace studies and build trials, then finalized around predictable load paths and buildability.

Design to Build Progression

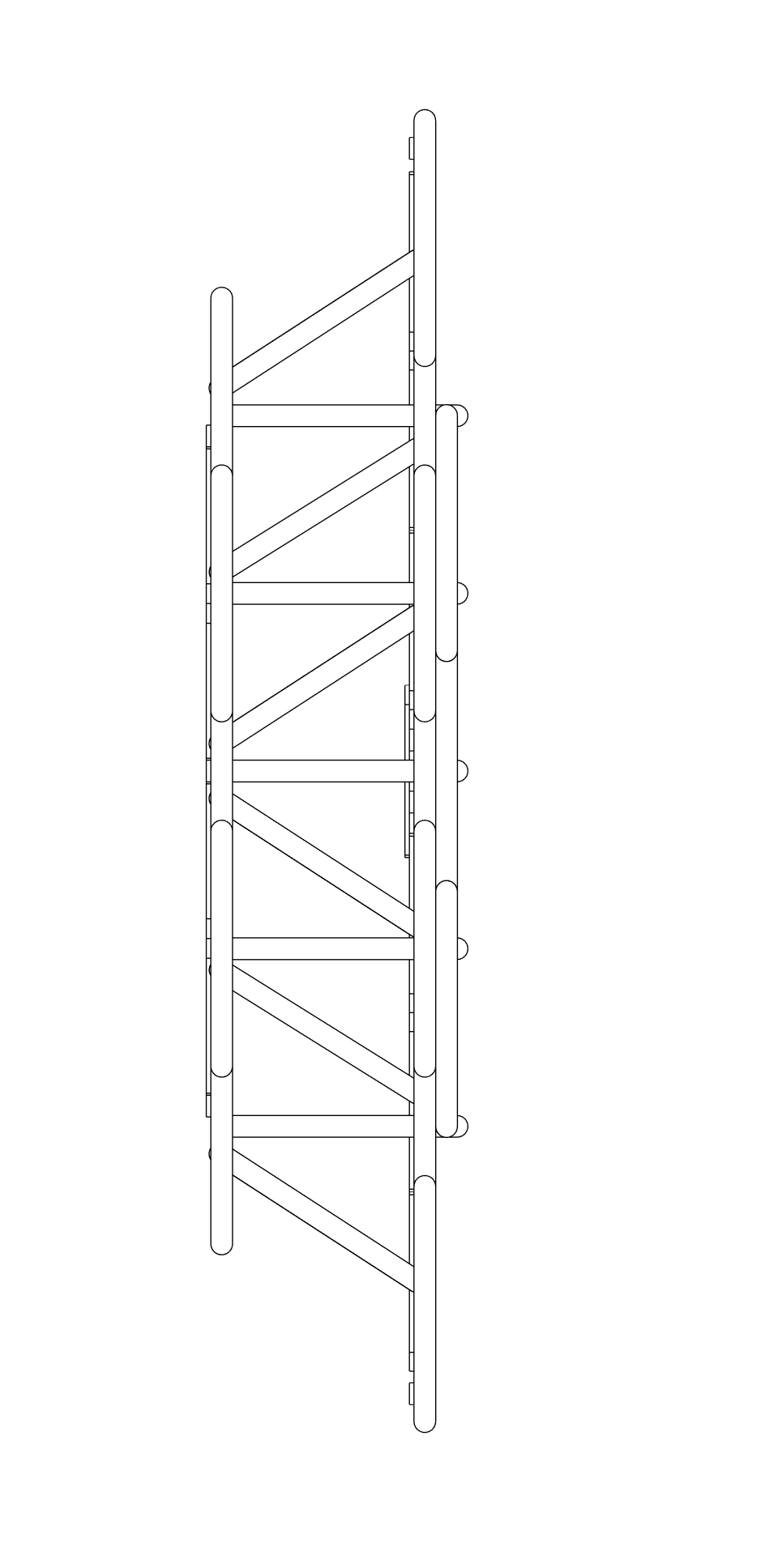

Initial sketch trace of bridge geometry.
Early geometry trace

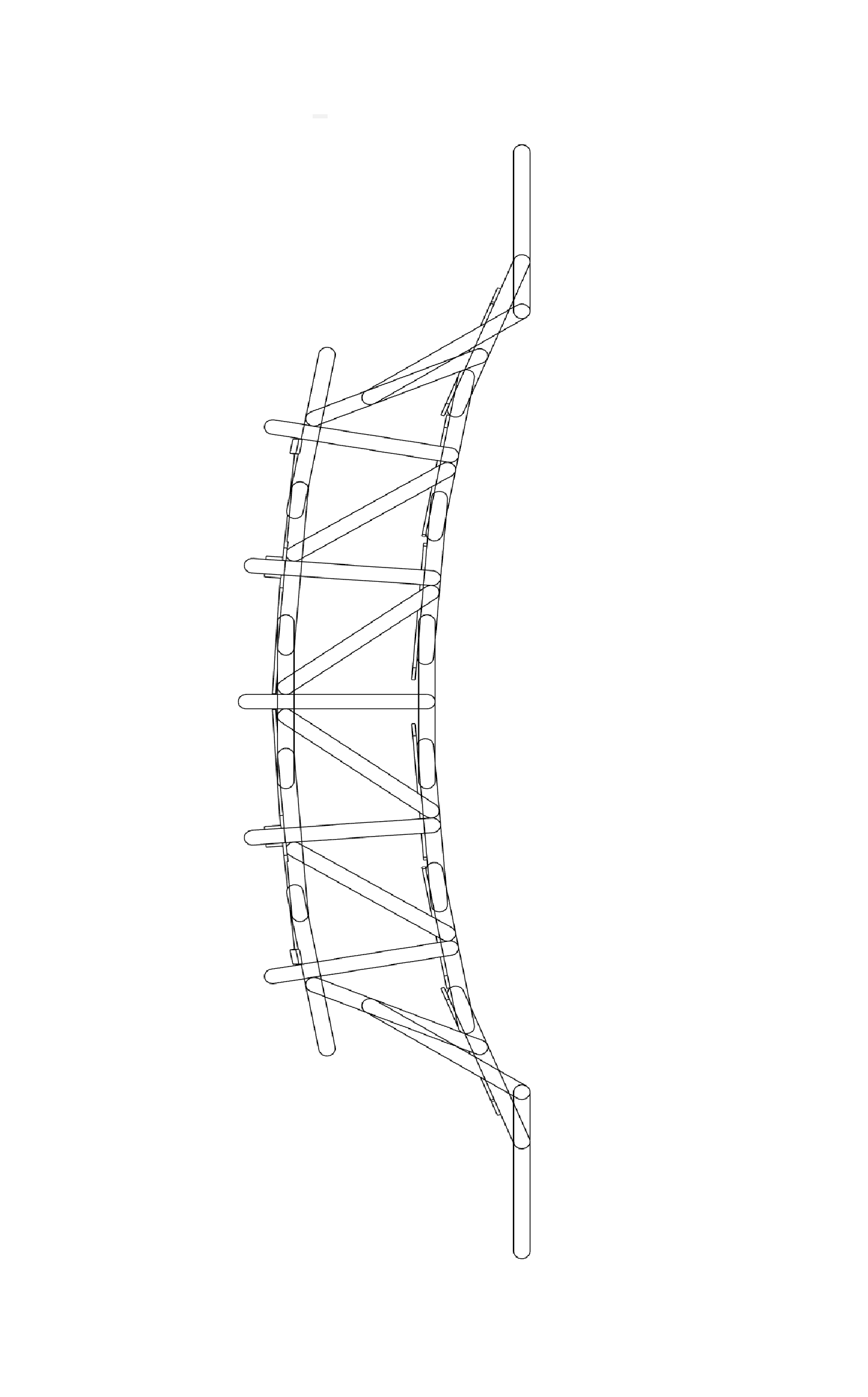

Refined sketch trace with member updates.
Refined member layout

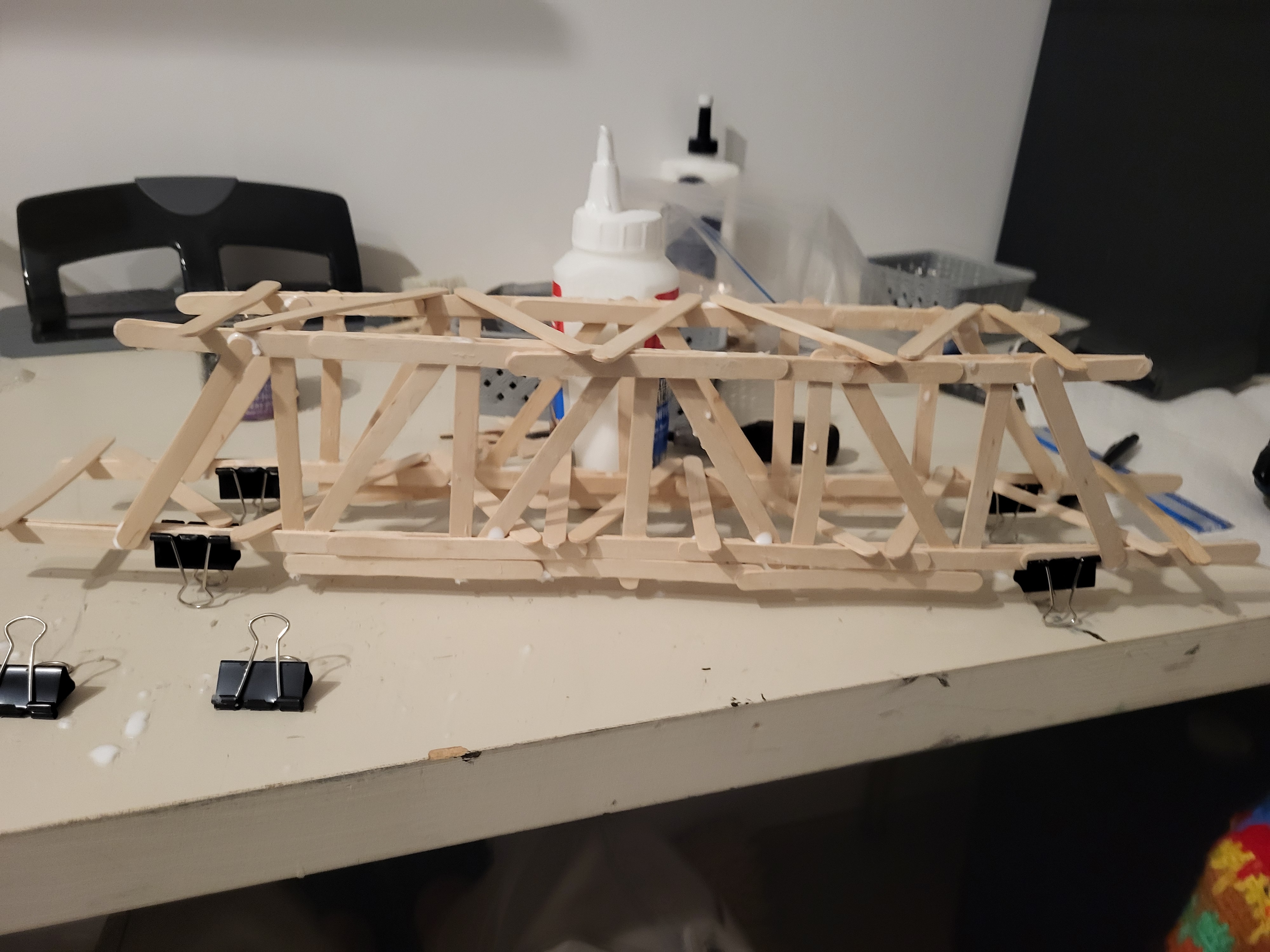

Prototype bridge build photo.
Prototype validation

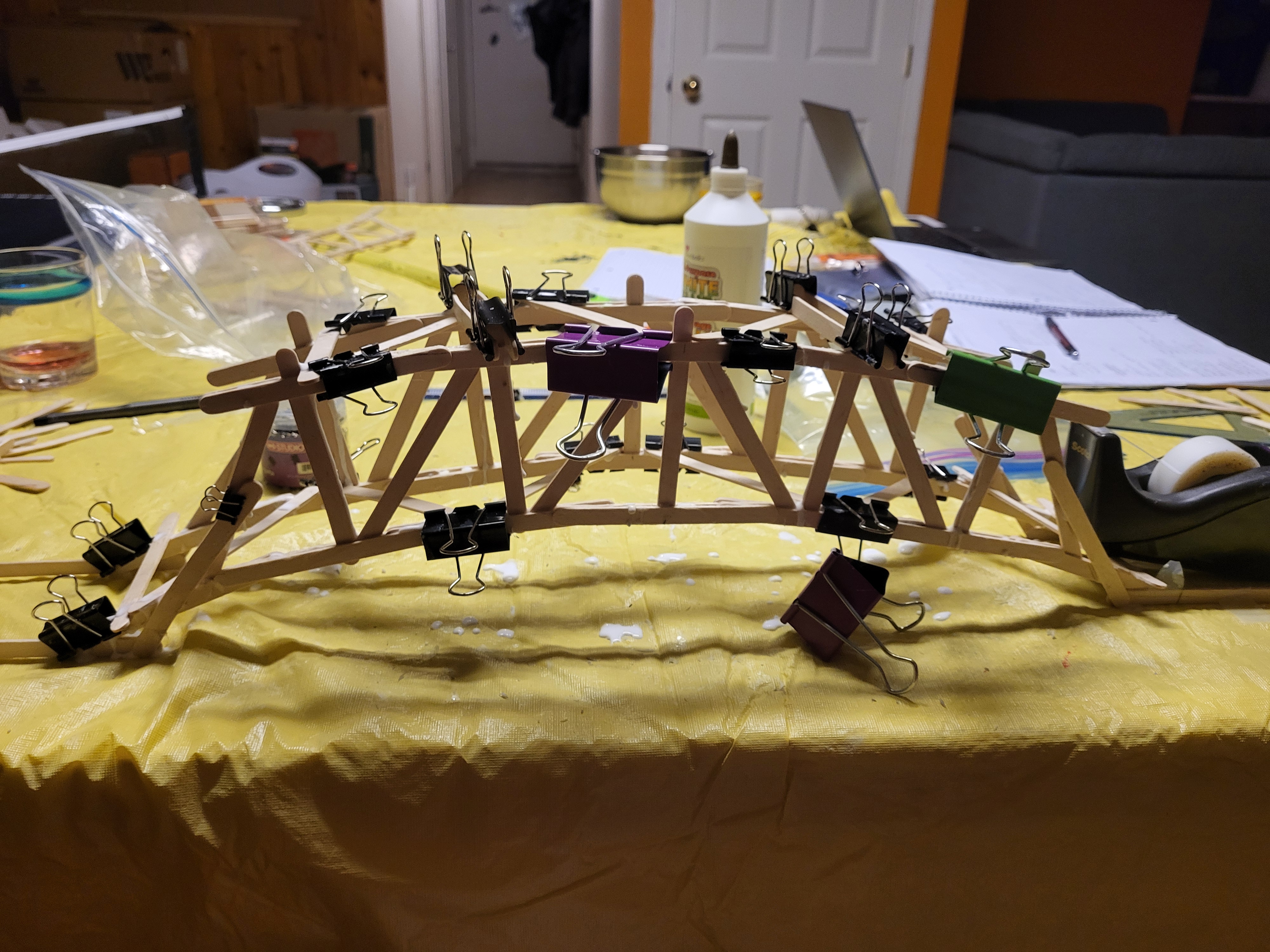

Bridge during final construction.
Final construction stage
Final bridge under weight test setup.
Load test setup
Deflection simulation graph for bridge behavior.
Deflection behavior summary

Formal Report

For full methodology, calculations, and final discussion, see the complete report.

Open full PDF report
